DEMO SX-CAN JLR Engineering Soft

DEMO SX-CAN JLR Engineering Tool for Jaguar Land Rover CAN Bus Vehicles

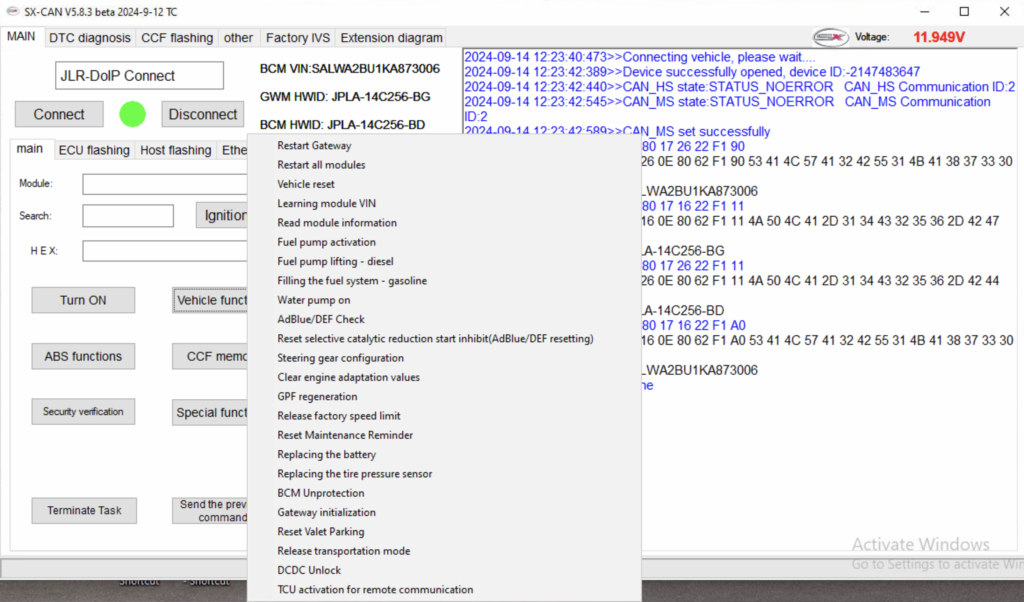

• Vehicle reset,
• Learning module VIN,
• Read module information,
• Fuel pump activation,
• Fuel pump lifting – diesel,
• Filling the fuel, system – gasoline,
• The water pump on,
• AdBlue/DEF Check,
• Reset selective catalytic,
• reduction start inhibit (AdBlue/DEF resetting),
• Steering gear configuration, Clear, engine adaptation values,
• GPF regeneration, Release factory speed limit,
• Reset Maintenance Reminder, Replace the battery,
• Replace the tire pressure sensor,
• BCM Unprotection, Gateway initialization,
• Reset Valet Parking, Release transportation mode,
• EVA1 repair AAM,
• TCU activation for remote communication
• Many more…

Package Include

• System installer with guidance
• The demo license with full functions is valid for 72 hours to work with 1-VIN

Manufacturing Year Functions Support

• MY 2006-2013 vehicle diagnostic, more master functions to be updated
  L319 2010+, L320 2010+, L322 2010+, L359 2013+, L405 2013+, L538 2012+, X150 2007+, X250 2008+, X351 2010+
• MY 2013-2019 vehicles, like Anti-theft key programming, all keys lost programming, mileage adjustment, ccf parameters coding, ECU flash, and IMC infotainment flashing.

Why the SX-CAN tool?

• JLR SDD 164 stopped and SDD 165 online ONLY and the JLR Pathfinder v374 has stopped updating and many features can’t be utilized.
• SX-CAN supports MY2013-2019 vehicles with all Pathfinder functions in an easy-to-operate JLR engineers’ way of coding programming, the used ECU programming, calibration, keys, and immobilizer features. IMC firmware upgrades, IPC cluster programming, and many OEM retrofit upgrade projects.
• SX-CAN supports MY2006-2013 vehicles diagnostic and with the coming updates with more features.
• A valued tool with a cash cow generates like the JLR SX-TOOL for DOIP vehicles.

What is the difference between SX-CAN and SX-TOOL?

• SX-CAN has supported JLR CAN BUS vehicles since MY2006-2019
• SX-TOOL master tool supports JLR DOIP vehicles from MY2017-2025

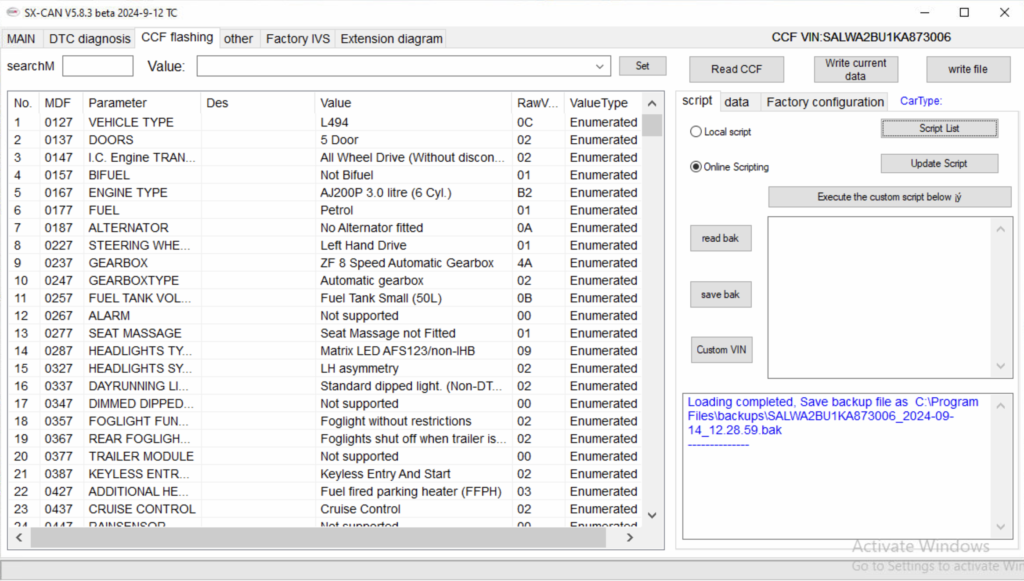

CCF Flashing and Memory Functions

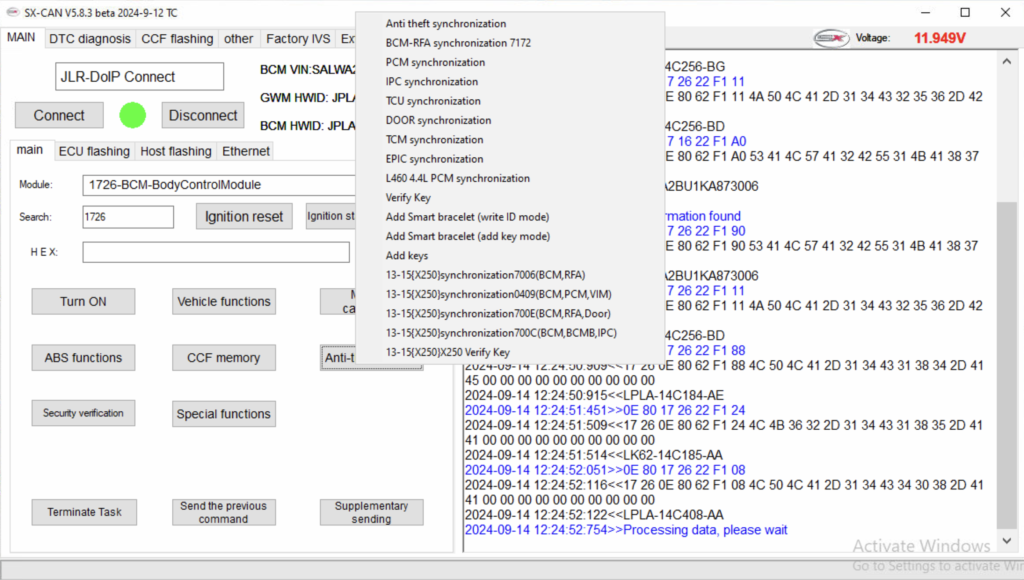

Anti-theft Modules Synchronization

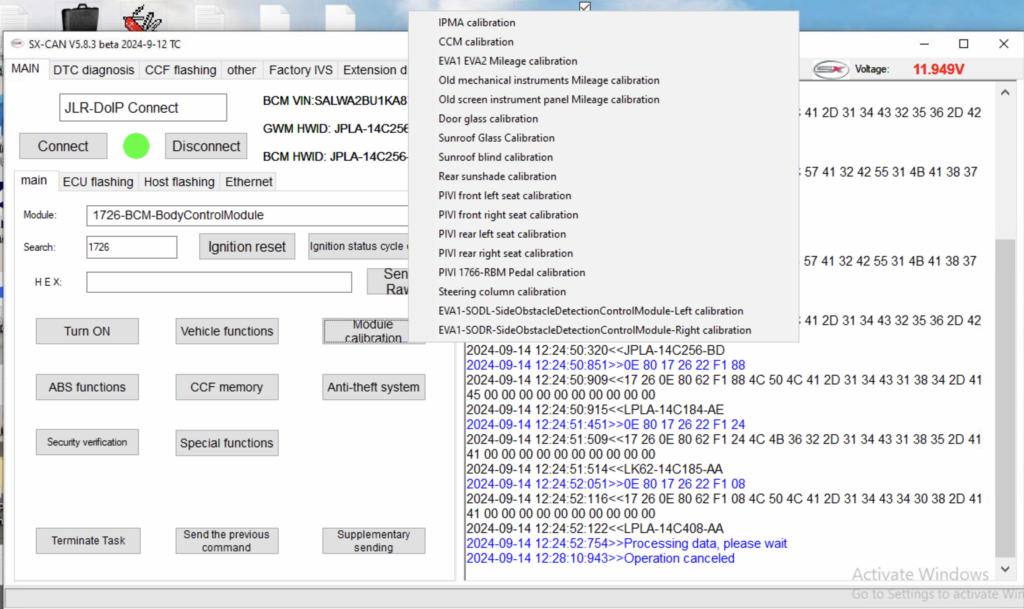

ECU Modules Calibration

SX-CAN Vehicles Support 092024

• 15-16 Discovery 4
• 14-16 Range Rover Range Rover Sport
• 15-19 Evoque
• 14-16 Jaguar XJ
• 14-16 Fpace X761
• 14-16 XEL
• 14-19 Epace
  Tested and proved to support Anti-theft key programming, all keys lost programming, mileage adjustment, ccf parameters coding, ECU flash, and IMC infotainment flashing

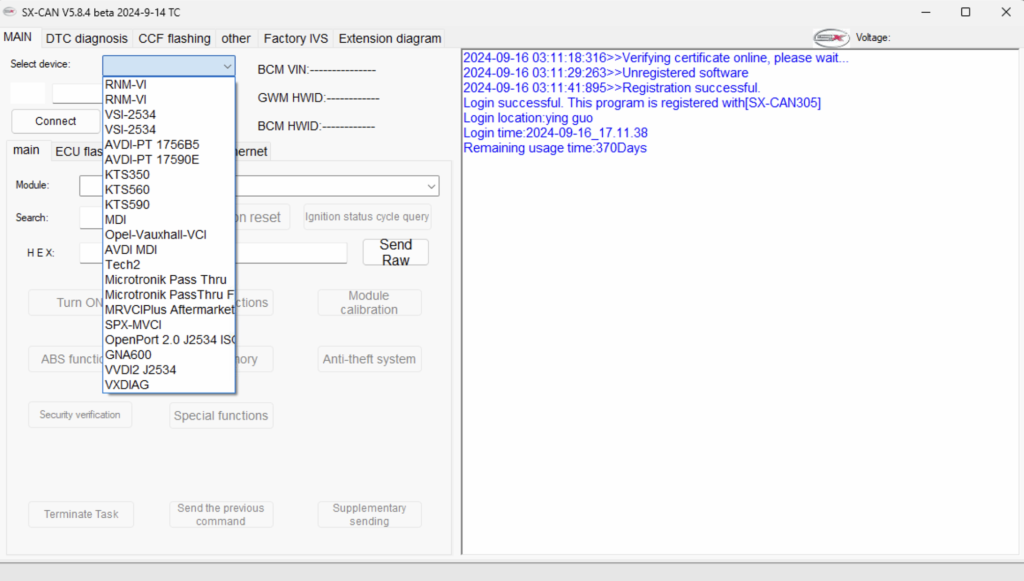

• If your laptop system USB drivers are installed, you can select a device from the VCI list and test it with the car like the below picture.

SX-CAN Interface / Device to work with

• JLR DOIP
• DA DOIP
• DA VCI USB Dongle
• SX DOIP+CAN VCI 2in1
• Mongoose Pasthru OEM device
• Openport 2.0
• Bosch J2534 devices
• Autel Passthru VCI
• Launch Passthru VCI
• Many more… for aftermarket J2534 pass-thru devices, please install the manufacturer’s USB driver and test on your own.
• For JLR MY2006-2013 diagnostic support, the majority of updates are needed for CCF edit, IVS flashing, and many other vehicle operations. contact us if you’re uncertain.
