Defender – Auto High beam Assist Activations

Short description: We provide a factory‑grade activation of the Auto High‑Beam Assist system for Land Rover Defender. The service includes wiring verification, JLR  coding, sensor calibration and a complete on‑road functional test.

Technical Overview

From the 2024 model year onward, every Defender L663 is built with the hardware required for Auto High‑Beam Assist (AHBA). The system consists of a forward‑looking camera (part ), a high‑intensity LED headlamp module (part 8U1150) and a dedicated CAN‑bus channel that feeds the Powertrain Control Module (PCM). At the factory the software flag that enables the camera‑based headlamp control stays dormant, so the vehicle operates with a conventional manual high‑beam switch.

Our activation switches the flag on, updates the PCM with the latest AHBA map and calibrates the camera so the ECU can reliably detect oncoming traffic and ambient lighting. After the procedure the system automatically toggles the high‑beam between “low” and “high” without driver intervention, improving safety and reducing driver workload.

Why Enable Auto High‑Beam Assist?

Three key benefits make the activation worthwhile for Defender owners:

1. Improved night‑time safety: The camera instantly detects on‑coming headlights or street lamps and dims the high beam to avoid glare.
2. Reduced driver fatigue: The system removes the need to manually toggle the high‑beam switch on long, dark stretches.
3. Regulatory compliance: In many EU markets, adaptive high‑beam systems are recognised as a driver‑assist feature that can lower insurance premiums.

Eligibility & Pre‑Fit Checks

We limit the service to Defender L663 MY24‑25 vehicles that already contain the camera and LED headlamp hardware. Before we start, the workshop must confirm the following:

• The VIN indicates a 2024‑2025 build (year code “X” or “Y”).
• The PCM part number matches 8U1060 and the firmware version is 5.04 or newer.
• The forward‑looking camera is securely mounted in the bonnet and free of obstruction.
• The LED headlamp module lights correctly on both low and high‑beam settings.
• No fault codes appear on the high‑beam CAN channel (ID 0x2B).

If any hardware element is missing, we can supply and install it as a separate retrofit package.

Activation Procedure – Step‑by‑Step

1. Diagnostic connection: We attach a JLR TechTool cable to the OBD‑II port and open the “Powertrain” and “Body” modules.
2. Firmware audit: The tool reads the PCM version, confirms the presence of the camera (part 8U1270) and records the current high‑beam configuration.

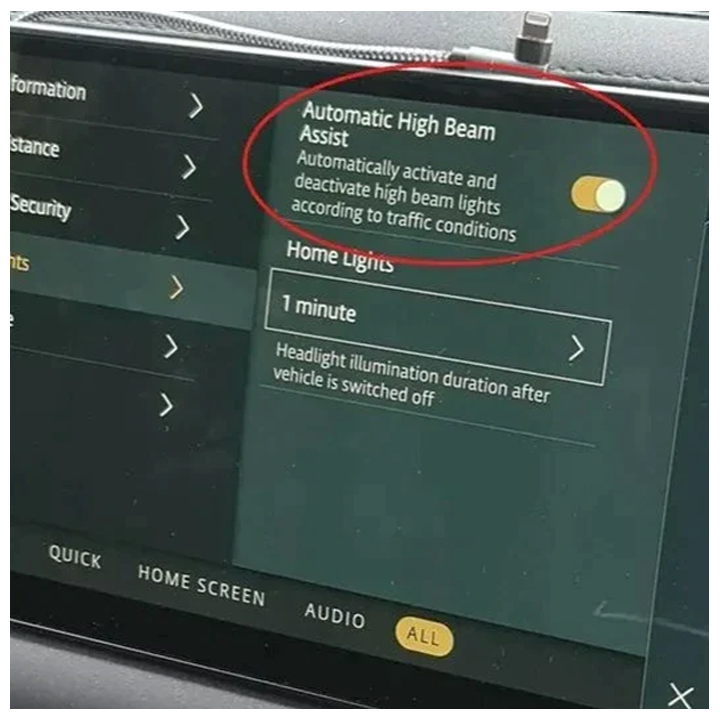

3. Software enable: In TechTool → Vehicle Setup → Lighting we tick “Enable Auto High‑Beam Assist”. The program writes the activation flag to the PCM and, if required, flashes the latest AHBA control map (v2.1).
4. Camera calibration: We run the “Forward‑Camera Alignment” wizard. The wizard uses a calibrated target placed 5 m in front of the vehicle to set the horizon line, vertical offset and distortion parameters.
5. Headlamp verification: We command the PCM to toggle low‑beam → high‑beam → auto‑mode while monitoring CAN traffic to ensure the correct messages are sent.
6. On‑road functional test: A short drive on a low‑light highway segment is performed:
   • When the vehicle reaches 80 km/h the system automatically switches to high‑beam.
   • Approaching an on‑coming vehicle triggers a rapid dim‑to‑low‑beam transition (≤ 0.4 s).
   • When ambient street lighting rises above the preset threshold the system reverts to low‑beam.
7. Documentation: We generate a PDF activation report (VIN, timestamps, PCM firmware, calibration data) and hand the customer a printed “Auto High‑Beam Assist Activation Certificate”.

Benefits for Workshops & Fleet Operators

• High‑margin service: We charge £299 + VAT for a complete activation, covering diagnostics, software flashing, calibration and certification.
• Standardised workflow: The same coding sequence applies to every eligible Defender, so training time is minimal.
• Compliance & safety: The activation meets EU type‑approval requirements for adaptive lighting systems.
• Customer retention: Offering a genuine JLR driver‑assist upgrade positions your centre as a premium service provider.

Pricing & Ordering Information

Our standard package includes:

• Full diagnostic session with JLR TechTool.
• Activation of the Auto High‑Beam Assist flag.
• PCM firmware update to the latest AHBA map.
• Forward‑camera alignment and calibration.
• On‑road functional verification (auto‑high‑beam, dimming, re‑engagement).
• Electronic activation report and printed certificate.
• 12‑month warranty on all coding, calibration and software work.

Price: £299 + VAT. If the vehicle does not have the forward‑looking camera, we offer a retrofit kit (part 8U1270) for £169 + VAT.

To place an order, complete the JLRCoding contact form, select “Defender – Auto High‑Beam Assist Activation” and attach a copy of the vehicle’s Service History or VIN verification.

Frequently Asked Questions (FAQ)

Do I need to replace any hardware?

No – every Defender built from 2024 onward already contains the required camera and LED headlamp module. The service only enables the software flag and performs calibration.

Can the system be disabled later?

Yes – we can clear the activation flag with the same JLR diagnostic tool, returning the vehicle to manual high‑beam operation.

Is there a warranty on the activation?

Yes – we provide a 12‑month warranty covering any coding errors, calibration inaccuracies or software glitches. OEM hardware remains under the standard JLR parts warranty.

Will this affect my insurance?

Most insurers view adaptive high‑beam systems as a safety enhancement and do not change premiums, but you may wish to inform your provider.
