Land Rover Defender – Heated Steering Wheel Retrofit

Short description: JLRCoding delivers a genuine Heated Steering Wheel package, wiring harness, BCM/ICCU activation, thermostat calibration and a full on‑road validation for Defender MY23‑25. Price £299 + VAT.

Technical Overview

The Heated Steering Wheel (HSW) – part 8U1200 – is a low‑frequency (125 kHz) resistive heater that is bolted directly to the steering‑wheel hub. Consequently, power is drawn from the 12 V accessory circuit, and the heating level (Low/Medium/High) is selected via the steering‑wheel buttons on the driver’s side. Moreover, a dedicated thermostat (part 8U1205) regulates the temperature to prevent overheating.

Defender L663 models built from MY23 onward are pre‑wired for this option; therefore, a four‑pin connector and a drilled recess in the hub already exist. As a result, the retrofit consists of a **hardware fit‑in** and a **software enable** step.

Component matrix

Component	Part No.	Specification
Heated steering‑wheel element	8U1200	Resistive coil, 25 W max, 12 V, IP68
Thermostat module	8U1205	Dual‑zone, 0‑70 °C range, ±1 °C accuracy
Wiring harness (HSW)	8U1210	4‑core shielded, 0.8 mm²
Body‑Control Module (BCM)	8U1110	Firmware ≥ 5.04, HSW activation flag
Instrument‑Cluster Control Unit (ICCU)	8U1310	Firmware ≥ 5.04, HSW map support
Calibration software	TechTool HSW	JLR diagnostic, temperature‑map upload

Why Fit a Heated Steering Wheel?

Four key reasons make the HSW retrofit attractive for owners, workshops, and fleet managers:

1. Driver comfort & safety: Warm hands improve focus during cold‑weather operation, and therefore increase grip on icy surfaces.

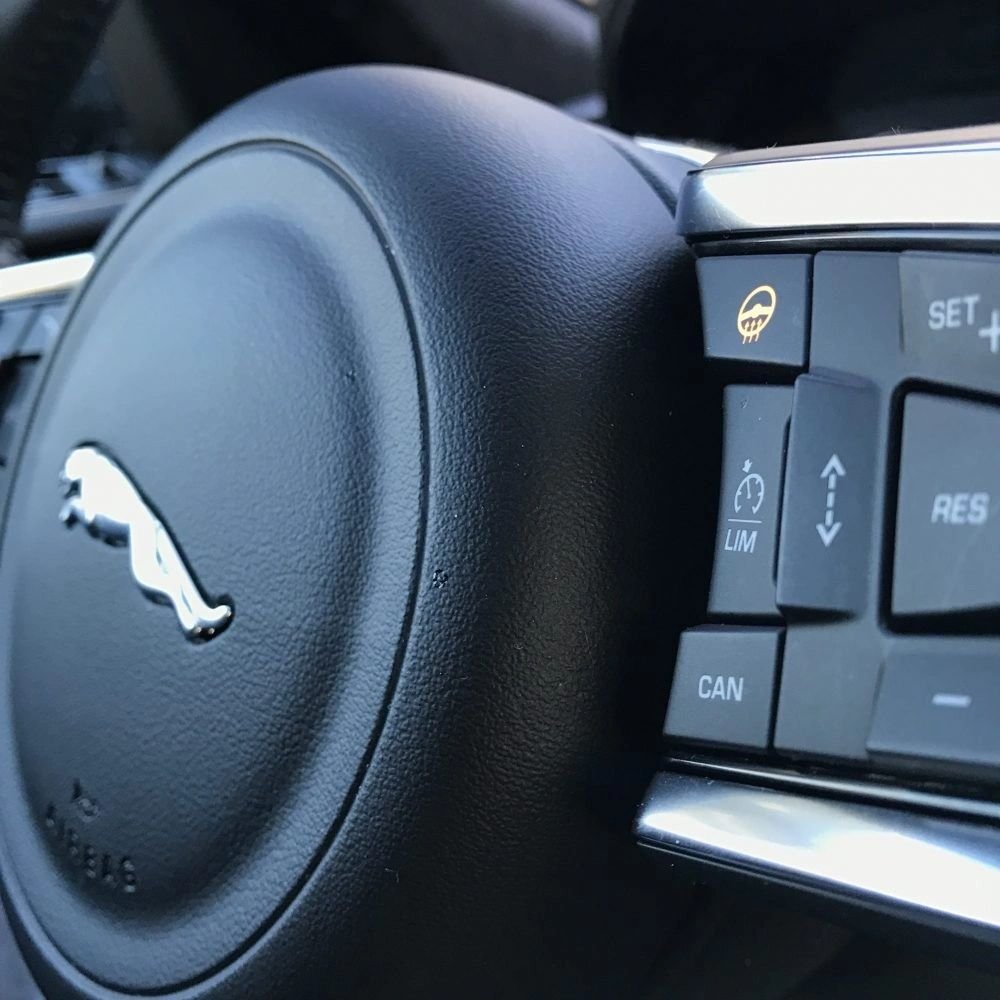

2. OEM‑grade integration: Additionally, the heater works with the factory steering‑wheel buttons, appears in the infotainment “Climate” menu, and respects the vehicle’s auto‑off timer – no aftermarket switches are required.
3. Future‑proof software: Moreover, the heating map lives in the ICCU, allowing over‑the‑air updates without any additional hardware.
4. Resale premium: Finally, a factory‑spec heated steering wheel is a sought‑after comfort option on the used‑car market, typically adding £1 200‑£1 800 to a Defender’s value.

Eligibility & Pre‑Fit Inspection

The retrofit is approved for Defender L663 MY23‑25 that meet the following prerequisites:

• VIN confirms a 2023‑2025 build (year code “W”, “X” or “Y”).
• BCM firmware version ≥ 5.04 (checked with JLR TechTool).
• The steering‑column already contains the factory‑drilled 4‑mm recess for the heater element.
• No active DTCs on the BCM or ICCU after a brief OBD scan.
• All interior trim panels can be removed safely to expose the steering‑wheel hub.

If the four‑pin wiring conduit is missing, a complete HSW harness (part 8U1210) can be supplied as a separate add‑on.

Installation & Activation – Step‑by‑Step Procedure

1. Power isolation: First, disconnect the 12 V battery and wait a minimum of 5 minutes to clear residual CAN voltage.
2. Steering‑wheel disassembly: Next, follow JLR Service Bulletin 30‑456‑A to remove the air‑bag module, then unbolt the steering‑wheel hub from the column.
3. Fit the heater element: Afterwards, press the heated‑wheel coil into the factory‑drilled recess, secure it with the retaining screw (M6 × 20 mm) and torque to 8 Nm.
4. Mount the thermostat: Subsequently, install the thermostat on the steering‑column bracket, route the HSW harness (part 8U1210) through the existing conduit, and connect to the BCM pins (pin 13 = HSW‑POWER, pin 14 = HSW‑GND).
5. Diagnostic connection: Then, re‑connect the battery, attach a JLR TechTool cable to the OBD‑II port and open the “Body Electronics” module.
6. BCM firmware check: After that, verify firmware ≥ 5.04; if an older version is present, update to the latest (v5.06) via TechTool → Update → Body Electronics.
7. ICCU coding: Consequently, in TechTool → Vehicle Setup → Heated Steering Wheel choose “Enable”. The software writes the activation flag to the BCM and uploads the HSW control map to the ICCU (v2.0).
8. Thermostat calibration: Moreover, run the “HSW Calibration Wizard”. The wizard cycles the heater through Low, Medium and High levels while measuring surface temperature, then stores the safe‑operating curve in the ICCU EEPROM.
9. On‑road functional test: Finally, conduct a short drive on a closed area:
   • Set heating to “Low” – wheel surface should reach ~30 °C in 30 seconds.
   • Increase to “High” – temperature must not exceed 45 °C (factory‑set limit).
   • Verify that the HSW status icon lights on the instrument cluster and that no DTCs are logged.
10. Re‑assembly: Subsequently, re‑install the steering‑wheel hub, torque the air‑bag mounting bolts to 12 Nm, and replace interior trim.
11. Documentation: In addition, export a PDF “Heated Steering Wheel Upgrade Report” (VIN, timestamps, BCM & ICCU firmware, calibration data) and provide the owner with a printed “HSW Installation Certificate”.

Advantages for Workshops & Fleet Operators

• Clear margin: Standard price £299 + VAT – therefore the price includes parts, labour, diagnostics and certification.
• Repeatable process: Additionally, identical coding routine for every eligible Defender keeps training time minimal.
• Regulatory compliance: Consequently, the retrofit complies with ECE R104 (heated steering wheel) and retains type‑approval.
• Brand positioning: Moreover, offering a genuine JLR heated‑steering‑wheel upgrade highlights your centre as a premium‑technology specialist.

Pricing & Ordering Details

The complete package provides:

• Heated steering‑wheel element (part 8U1200) and thermostat module (part 8U1205).
• Wiring harness (part 8U1210) and sealing gaskets.
• Full diagnostic session with JLR TechTool.
• BCM firmware update and HSW activation flag upload.
• ICCU HSW control‑map upload.
• Thermostat calibration and on‑road functional verification.
• Electronic upgrade report & printed certificate.
• 12‑month warranty covering parts, labour and software.

Standard price: £299 + VAT. If the vehicle already has the heater installed but only requires coding and calibration, a “Software‑Only” package is available for £149 + VAT.

To order, simply complete the JLRCoding contact form, select “Defender – Heated Steering Wheel Retrofit”, and attach a copy of the vehicle’s service history or VIN verification.

Frequently Asked Questions (FAQ)

Do I need to replace the steering wheel?

No – the retrofit installs a heating coil inside the existing hub. Consequently, the outer wheel cover remains unchanged.

Can the heated steering wheel be de‑activated later?

Yes. Moreover, using JLR TechTool the activation flag can be cleared, reverting the vehicle to a non‑heated steering wheel (the heater element must be removed).

Is there a warranty on the heating element?

Yes – a 12‑month warranty covers coil failure, thermostat defects or software issues. Additionally, original JLR components remain under the manufacturer’s standard warranty.

Will the upgrade affect my insurance?

Most insurers view the heated steering wheel as a comfort feature and therefore do not alter premiums, but you may wish to inform your provider.
