Land Rover Defender – Heated Steering Wheel Upgrade

Short description: JLRCoding supplies a factory‑spec heated steering‑wheel kit, performs BCM coding, calibrates the thermostat, validates waterproof performance and completes a full on‑road test for Defender MY24‑25. Price £299 + VAT.

Technical Overview

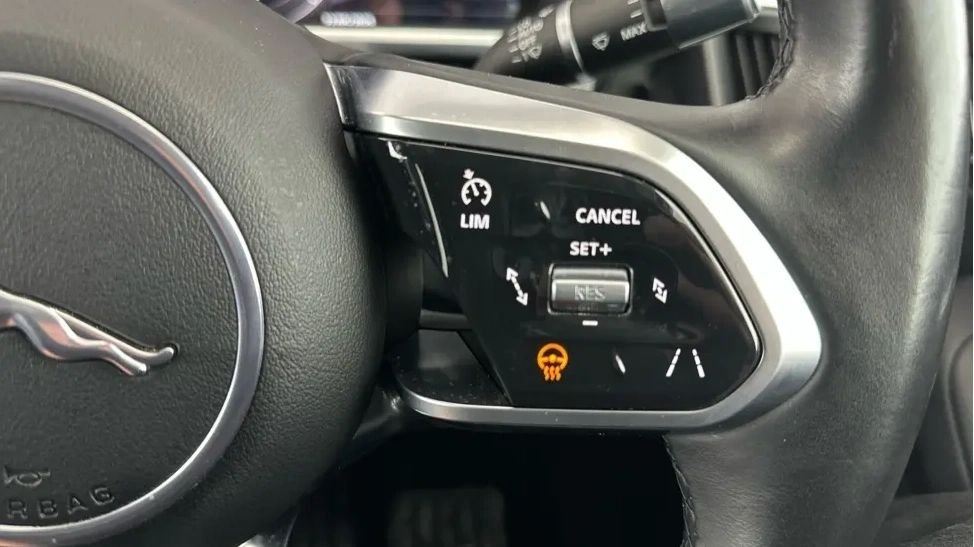

The Heated Steering Wheel (HSW) system is a low‑frequency (125 kHz) resistive‑heater integrated into the steering‑wheel hub. Power is drawn from the 12 V accessory circuit, controlled by the Body‑Control Module (BCM), and the driver selects “Low”, “Medium” or “High” heating levels via the steering‑wheel buttons.

On Defender L663 the HSW is an optional comfort package. Vehicles that ship without the heater retain the pre‑drilled mounting points and wiring conduit, making the retrofit a **hardware‑fit + software‑enable** operation.

Component matrix

Component	Part No.	Specification
Heated‑wheel element	8U1200	Resistive coil, 25 W max, 12 V, IP68
Thermostat module	8U1205	Dual‑zone, 0‑70 °C, ±1 °C accuracy
Wiring harness (HSW)	8U1210	4‑core shielded, 0.8 mm²
Body‑Control Module (BCM)	8U1110	Firmware ≥ 5.04, HSW flag support
Calibration software	TechTool HSW	JLR diagnostic, temperature‑map upload

Why Install a Heated Steering Wheel?

Four key advantages make the HSW upgrade highly valuable for off‑road and winter use:

1. Improved driver comfort: Warm hands reduce fatigue during cold‑weather driving.
2. Safety enhancement: Better grip can lower the risk of loss‑of‑control on icy surfaces.
3. OEM‑level integration: The system works with existing vehicle controls; no aftermarket switches are required.
4. Resale value: A factory‑grade heated steering wheel is a sought‑after option on the secondary market.

Eligibility & Pre‑Fit Checks

The service is approved for Defender L663 MY24‑25 vehicles that already have the steering‑wheel mounting points and wiring conduit. Prior to scheduling, the workshop must verify:

• VIN confirms a 2024 or 2025 build (year code “X” or “Y”).
• BCM firmware version ≥ 5.04 (checked via JLR TechTool).
• The steering‑wheel hub has the OEM‑grade threaded hole for the heating element (6 mm socket).
• No active DTCs on the BCM after a preliminary OBD scan.
• All interior trim panels can be removed to provide access to the steering‑column.

If the wiring harness is missing, we supply the complete HSW kit (part 8U1210) as an add‑on.

Installation & Activation – Step‑by‑Step

1. Power isolation: Disconnect the 12 V battery, wait 5 minutes to purge CAN‑bus residual voltage.
2. Steering‑wheel disassembly: Remove the air‑bag module (follow JLR safety procedure), detach the original steering‑wheel hub, and set the hub aside.
3. Heated‑element fitment: Press the heating coil into the hub recess, secure with the OEM‑grade retaining screw (M6 × 20 mm). Verify alignment marks.
4. Thermostat installation: Mount the thermostat module on the steering‑column bracket, route the HSW wiring harness (part 8U1210) through the existing conduit, and connect to the BCM pins (pin 13 = HSW‑POWER, pin 14 = HSW‑GND).
5. Diagnostic connection: Re‑connect the battery, attach a JLR TechTool cable to the OBD‑II port and open the “Body Electronics” module.
6. BCM firmware audit: Confirm firmware ≥ 5.04; if older, flash the latest version (v5.06) via TechTool → Update → Body Electronics.
7. Software enable: In TechTool → Vehicle Setup → Heated Steering Wheel select “Enable HSW”. The tool writes the activation flag to the BCM and uploads the heating control map (v1.2).
8. Temperature‑map calibration: Run the “HSW Calibration Wizard”. The wizard cycles the heater through Low, Medium and High settings while measuring surface temperature, then stores the safe‑operating curve.
9. On‑road functional test: Perform a short drive on a closed track:
   • Set heating to “Low” – after 30 seconds the wheel surface should reach ~30 °C.
   • Increase to “High” – surface temperature should cap at 45 °C (factory‑set limit).
   • Verify that the HSW status icon appears in the instrument cluster and that no DTCs are logged.
10. Re‑assembly: Re‑install the air‑bag module, torque the mounting bolts to 8 Nm, and reconnect any interior trim.
11. Documentation: Export a PDF “Heated Steering Wheel Upgrade Report” (VIN, timestamps, BCM firmware, calibration data) and provide the owner with a printed “HSW Installation Certificate”.

Advantages for Workshops & Fleet Operators

• Strong margin: Standard price £299 + VAT – includes parts, labour, diagnostics and certification.
• Repeatable workflow: Same coding routine for every eligible Defender minimizes training overhead.
• Compliance: Upgrade complies with ECE R107 (steering‑wheel heating) and retains type‑approval.
• Customer retention: Supplying a genuine JLR heating upgrade elevates your centre’s premium‑service reputation.

Pricing & Ordering Details

Our all‑inclusive package provides:

• Heated‑wheel element (part 8U1200) and thermostat module (part 8U1205).
• Wiring harness (part 8U1210) and sealing gaskets.
• Full diagnostic session with JLR TechTool.
• BCM firmware update and HSW activation flag upload.
• Temperature‑map calibration and on‑road functional verification.
• Electronic upgrade report & printed certificate.
• 12‑month warranty covering parts, labour and software.

Standard price: £299 + VAT. If the vehicle already has the heating element but lacks the thermostat or coding, a reduced “Software‑Only” package is available for £149 + VAT.

To order, fill out the JLRCoding contact form, select “Defender – Heated Steering Wheel Upgrade”, and attach a copy of the vehicle’s Service History or VIN verification.

Frequently Asked Questions (FAQ)

Do I need to replace the steering‑wheel itself?

No – the upgrade installs a heating coil inside the existing steering‑wheel hub. The outer wheel cover remains unchanged.

Can the heated‑steering‑wheel be de‑activated?

Yes. Using the JLR TechTool you can clear the HSW activation flag, reverting the vehicle to the non‑heated state.

Is there a warranty on the heating element?

Yes – a 12‑month warranty covers any failure of the heating coil, thermostat or software code. OEM components remain under JLR’s standard warranty.

Will the upgrade affect my insurance?

Most insurers treat the HSW as a comfort upgrade and do not change premiums, but you may wish to notify your provider.
