Defender – Advanced Tow‑Assist Activation

Short description: Factory‑grade activation of Advanced Tow‑Assist on Land Rover Defender (L663) – wiring, ECU coding and functional verification to enable full trailer‑assist functionality.

Technical Overview

The New Land Rover Defender (model code L663) is engineered with a latent Advanced Tow‑Assist (ATA) package that can be activated via a combination of wiring, CAN‑bus configuration and ECU coding. When enabled, ATA provides:

• Dynamic trailer‑stability control (TSC) that intervenes on both the steering and braking circuits.
• Enhanced hill‑hold and hill‑descent assist while towing.
• Integrated trailer‑lighting and CAN‑bus communication with the tow‑controller module.

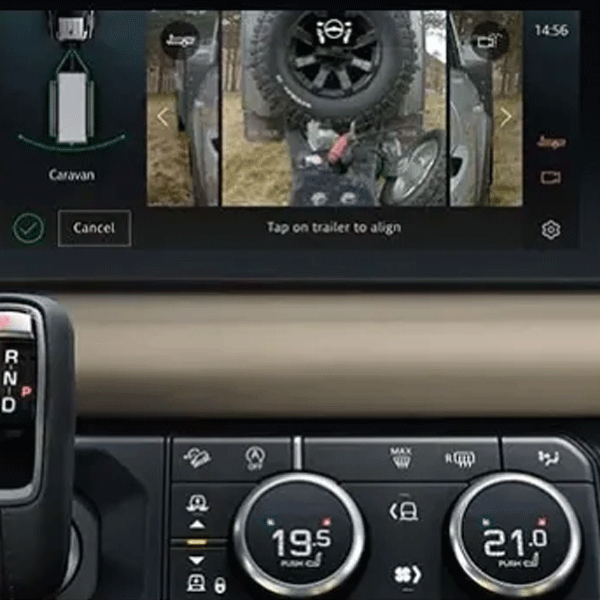

• Optional “Trailer Reverse” camera‑overlay via the infotainment screen.

From a JLR service‑centre perspective the system is already physically present in most Defender 90/110/130 builds; activation simply unlocks the software and provides the necessary wiring harnesses.

Why Activate Advanced Tow‑Assist?

Defender owners who regularly tow caravans, boat trailers or utility trailers benefit from ATA in three key ways:

1. Safety: The system monitors trailer sway and automatically applies brake pressure to the appropriate axle, reducing the risk of jack‑knifing.
2. Driver confidence: Hill‑assist functions work in concert with the vehicle’s Terrain Response system, delivering smoother climbs and descents while loaded.
3. Compliance: Activated ATA ensures that trailer lighting and CAN‑bus signalling meet UK/European type‑approval requirements.

Fitment & Eligibility

The activation service is compatible with every Defender built from 2020 onward (model code L663) that is equipped with the optional tow‑assist hardware. Prior to ordering, the workshop should confirm:

• VIN matches a build that includes the tow‑assist control module (check the build sheet or use JLR Diagnostic Tool).
• Vehicle has the 13‑pin trailer harness present (visible under the rear bumper).
• ABS/ESC modules are from a compatible production batch (most post‑2020 units are).

Activation Process – Step‑by‑Step

1. Pre‑check: Connect a JLR TechTool (or ADAS) cable to the OBD‑II port and read the vehicle’s ECU version. Verify the presence of the TCM (part number 8U1198).
2. Wiring verification: Inspect the rear‑bumper harness for the 13‑pin connector. If missing, order the OEM harness (part 8U1331) and install it using the factory routing guides.
3. Software enable: Using TechTool, navigate to Vehicle Setup → Tow‑Assist and select “Enable Advanced Tow‑Assist”. The tool writes the activation flag to the ADAS ECU and updates the TCM firmware if required.
4. Calibration: Run the Steering‑Angle Sensor Calibration routine to align the SAS data with the newly‑enabled TSC algorithm.
5. Functional test: Connect a certified trailer (or a test harness) and verify:
   • Trailer‑light control signals on pins 4‑7 (ground, left/right turn, brake).
   • ATA‐TSC intervention by performing a low‑speed sway test (use the trailer‑assist test mode in TechTool).
   • Hill‑assist operation with a load on the trailer.
6. Documentation: Export a full coding report (VIN, activation timestamp, ECU versions) and provide it to the customer with a service “Certificate of Activation”.

Benefits for Workshops & Fleet Operators

• Increased revenue: ATA activation is a high‑margin, warranty‑backed service (12 months).
• Standardised workflow: The JET LS/TechTool procedure is identical across all Defender variants, reducing training time.
• Regulatory compliance: Guarantees that any towed load meets UK/EU lighting and stability regulations.
• Customer loyalty: Offering a factory‑grade tow‑assist activation builds trust and differentiates your service centre.

Pricing & Ordering

JLRCoding provides the activation package at a flat rate of £299 + VAT, which includes:

• Full diagnostic session with JLR TechTool.
• OEM wiring harness (if required) – same price, stocked in our parts inventory.
• Coding & calibration labour (up to 90 minutes).
• Official activation certificate and electronic report.

To place an order simply fill out the JLRCoding contact form, reference “Defender ATA Activation” and attach a copy of the vehicle’s Service History or Build Sheet.

FAQ – Advanced Tow‑Assist Activation

Do I need to replace any hardware?

No – the hardware is pre‑installed on eligible Defenders. Only the 13‑pin harness may need fitting if it was omitted at factory.

Can I activate ATA on a Defender without the optional TCM?

Without the control module the full feature set cannot be enabled. A new TCM can be retrofitted but this is a separate parts‑and‑labour package.

Is there a warranty on the activation?

Yes – 12 months for any coding errors or software issues. Mechanical components (harness, TCM) are covered by the standard JLR parts warranty.

Will the activation affect my vehicle insurance?

Most insurers view ATA as a safety improvement and do not increase premiums. We recommend notifying your provider of the activation.
