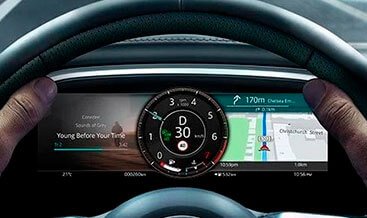

Interactive Driver Display (TFT cluster) GEN2 | JLR OEM IPC‑GWM‑IMC‑HS‑CAN CCF‑DoIP Activation & Display Calibration
Interactive Driver Display (TFT cluster) GEN2 | JLR OEM IPC‑GWM‑IMC‑HS‑CAN CCF‑DoIP Activation & Display Calibration
Our Interactive Driver Display (TFT cluster) GEN2 Activation Service unlocks dealer‑standard GEN2 full‑digital reconfigurable instrument‑cluster functionality for modern Jaguar and Land‑Rover Pivi‑Pro‑equipped vehicles. In many late‑generation JLR platforms, the IPC instrument‑panel‑cluster control module, GEN2 high‑resolution TFT panel and LVDS communication hardware are factory‑pre‑installed. Even with complete physical GEN2 TFT‑cluster hardware fitted, factory CCF trim‑level configuration locks disable full‑digital display modes by default. As a result, the cluster operates in limited hybrid‑gauge mode; full‑screen navigation mapping, re‑configurable layouts and complete ADAS visual feedback remain inaccessible. Unfortunately, untrained generic coding often misconfigures IPC, GWM gateway and HS‑CAN infotainment‑network parameters. As a direct consequence, owners face blank display frames, missing gauge data and persistent instrument‑cluster‑related DTC fault‑codes. For this reason, our Pathfinder‑validated DoIP programming safely enables full GEN2 Interactive Driver Display performance while preserving infotainment‑network integrity.
JLR Interactive Driver Display (TFT cluster) GEN2 Technical Overview
IPC GEN2 TFT‑Cluster Hardware, HS‑CAN Integration & Factory CCF Software Lock
Controlled by the IPC instrument‑panel‑cluster module, the GEN2 Interactive Driver Display communicates with GWM gateway and IMC infotainment master‑controller over the high‑speed HS‑CAN network. Furthermore, the GEN2 TFT hardware delivers high‑definition re‑configurable rendering, receiving real‑time vehicle metrics, navigation map tiles and ADAS warning events via LVDS signal pathways. Specifically, drivers can toggle multiple preset layouts including full‑map view, digital dials, media playback panels and driver‑assist status read‑outs, operated via steering‑wheel multi‑function switches. Meanwhile, the IPC manages display brightness auto‑dimming, warning‑lamp prioritisation and fault‑status logging for all connected vehicle ECUs. The GWM synchronises cross‑module data traffic between powertrain, chassis and infotainment domains. Therefore, vehicles fitted with genuine GEN2 IPC‑TFT hardware only require validated CCF‑flag activation plus HS‑CAN module relearn and display‑profile calibration for full operational capability.
Core Functional & User‑Experience Technical Benefits
Re‑Configurable Digital Layouts & Integrated Navigation‑ADAS Visualisation
Activation of OEM Interactive Driver Display (TFT cluster) GEN2 greatly elevates driver information accessibility for highway, urban and off‑road driving scenarios. Above all else, customisable screen layouts let drivers prioritise speed, RPM, navigation, media or ADAS alerts directly within the instrument binnacle. In addition, full‑screen embedded navigation removes the need for frequent glances toward the central Pivi‑Pro touch‑screen. Whenever ambient‑light conditions shift, built‑in IPC auto‑dimming adjusts TFT brightness to avoid driver glare. Equally important, every graphics‑rendering cycle strictly follows JLR OEM GEN2 operational boundaries. These built‑in safeguards eliminate screen flicker, data‑drop‑out risks and unexpected cluster reboot events.
OEM Compliance & Warranty‑Safe Programming Workflow
Fault‑Free IPC‑GWM‑IMC Synchronisation & Reversible CCF Coding
Our GEN2 Interactive Driver Display upgrade strictly adheres to official JLR DoIP programming and
