Interactive Driver Display (TFT cluster) | JLR OEM IPC‑CCF‑DoIP Activation & HS‑CAN Network Calibration
Interactive Driver Display (TFT cluster) | JLR OEM IPC‑CCF‑DoIP Activation & HS‑CAN Network Calibration
Our Interactive Driver Display (TFT cluster) Activation Service delivers dealer‑standard OEM full‑digital instrument‑cluster functionality for modern Jaguar and Land‑Rover vehicles. In many cases, late‑model JLR vehicles are fitted with high‑resolution IPC (Instrument Panel Cluster) TFT‑display hardware; nevertheless, advanced interactive‑driver‑display features remain restricted by CCF trim‑level configuration locks. While base‑configurations only show limited fixed gauge layouts, the dormant full‑feature TFT cluster supports map projection, custom view‑modes and live ADAS status read‑outs. Unfortunately, generic third‑party coding frequently misconfigures IPC and HS‑CAN gateway parameters; consequently, this triggers cluster DTC faults, missing graphics, blank screen events and intermittent data‑sync failures. For this reason, our authorised Pathfinder‑compliant DoIP programming enables stable factory‑spec interactive‑TFT‑cluster performance while preserving full vehicle‑network integrity.
JLR Interactive Driver Display (TFT cluster) Technical Overview
IPC TFT‑Display Hardware, HS‑CAN Communication & Factory CCF Software Lock

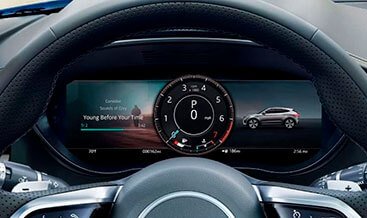

Genuine JLR Interactive Driver Display (TFT cluster) is managed by the IPC Instrument Panel Cluster module communicating over the vehicle HS‑CAN infotainment‑ADAS network. Furthermore, the high‑definition thin‑film‑transistor hardware renders re‑configurable gauge styles, trip‑computer data, warning lamps, navigation overlay and real‑time driver‑assistance status. Specifically, drivers can toggle multiple display layouts via steering‑wheel controls, switching between classic dials, full‑map view and minimal driving‑data modes. Meanwhile, the IPC synchronises continuously with Pivi‑Pro infotainment, BCM gateway, powertrain ECUs and ADAS modules to pull live vehicle‑status data. As a result, vehicles possessing complete genuine IPC TFT‑cluster hardware only require validated CCF‑flag activation plus post‑service network‑relearn to unlock full interactive‑driver‑display capability.
Core Functional & Convenience Technical Benefits
Re‑configurable Digital Layouts & In‑Cluster Navigation Projection
Activating OEM Interactive Driver Display (TFT cluster) greatly elevates cockpit usability and driver situational awareness. Primarily, multiple customisable screen layouts let drivers prioritise speed, RPM, trip information or navigation map content directly within the instrument binnacle. In addition, in‑cluster navigation projection removes the need to frequently glance over to the central touch‑screen during highway and urban journeys. Beyond that, the TFT cluster renders ADAS warnings, cruise‑control status and terrain‑response animations matching factory OEM graphic themes. Most importantly, every display‑rendering and data‑synchronisation cycle adheres strictly to JLR IPC OEM safety thresholds, ensuring reliable, distortion‑free driver‑information output at all times.
OEM Compliance & Warranty‑Safe Programming Workflow
Fault‑Free IPC‑HS‑CAN Synchronisation & Reversible CCF Coding
Our Interactive Driver Display (TFT cluster) upgrade strictly follows official JLR DoIP programming protocols and Pathfinder diagnostic workflows. First of all, we run comprehensive pre‑service diagnostic scans for IPC, BCM gateway, infotainment and ADAS network modules to log pre‑existing fault conditions. Whenever factory high‑resolution IPC TFT‑cluster hardware is verified as fully fitted, we enable dormant factory‑approved CCF feature flags without rewriting core IPC firmware. Alternatively, for vehicles missing physical full‑TFT instrument hardware, we supply genuine‑spec IPC cluster retrofit, harness adaptation and complete HS‑CAN network‑setup. Subsequently, all coding changes stay fully reversible, allowing stock‑configuration restoration for dealer workshop visits and SOTA over‑the‑air updates. Ultimately, this service maintains full‑system integrity and works for private, leased and fleet‑operated JLR vehicles.
Key Technical Features
-
OEM Interactive TFT Cluster: Full‑feature re‑configurable digital instrument‑cluster with multiple user‑selectable gauge view‑modes.
-
In‑Cluster Navigation & ADAS Overlay: Map projection, cruise‑control status and Terrain‑Response animated graphic‑display support.
-
IPC‑HS‑CAN Network Calibration: Dealer‑grade module relearn, bus‑message synchronisation and IPC‑related DTC‑fault clearing.
-
Reversible OEM‑Compliant Coding: Clean CCF‑DoIP activation with zero permanent fault‑codes and full infotainment‑system integrity.
Service Inclusions | Informational & Transactional
Complete Interactive Driver Display (TFT cluster) Activation & Network Calibration Package
Every service includes VIN‑based IPC TFT‑cluster hardware compatibility validation, full pre‑programming IPC‑BCM‑infotainment diagnostic scan, bespoke CCF‑DoIP interactive‑driver‑display feature activation, plus post‑upgrade layout‑switching, map‑overlay and multi‑mode display functional validation. In summary, upgrade your Jaguar or Land‑Rover with factory‑grade Interactive Driver Display (TFT cluster) for enhanced, customisable digital driver‑information within your instrument binnacle.
