Heated Front Seats Activation & Retrofit | OEM JLR Winter Comfort Seat Upgrade

Short Description

Our Heated Front Seats service provides software‑only activation. It also delivers complete hardware‑plus‑coding retrofit for modern DOiP‑enabled Jaguar and Land Rover vehicles.

Many mid‑spec vehicles ship with DSM and PSM seat‑control‑modules. They also include seat heating mats and NTC thermistor temperature‑sensing hardware for driver and passenger front positions.

Factory CCF trim‑level restrictions often lock heated‑seat functionality. The climate menus hide heating controls even with physical heating‑mat hardware already fitted inside the seats.

We use certified Pathfinder DOIP programming. It updates DSM, PSM, BCM and GWM gateway CCF parameters to unlock full Heated Front Seats feature‑sets.

For vehicles missing OEM heating‑mat or thermistor hardware, we supply genuine seat components and LIN‑bus wiring‑harness adaptors. Our OEM‑compliant setup maintains stable LIN‑CAN bus communication. It clears heated‑seat‑related DTC faults across all connected seat‑control modules.

Product Technical Overview

JLR OEM Heated Front Seats are managed by DSM driver‑seat‑module and PSM passenger‑seat‑module. These ECUs communicate over LIN‑bus with seat heating mats and built‑in thermistor temperature sensors.

Each module regulates power output to cushion and backrest heating elements. It reads real‑time seat‑surface temperature and applies thermal safety cut‑off limits to prevent overheating.

Physical fitment of heating mats and thermistor sensors alone is not sufficient. Valid CCF build‑file flags must notify the vehicle network that heated‑seat hardware is installed.

Multiple DOiP‑architecture JLR vehicles hold dormant front‑seat‑heating functions on base‑ and mid‑range trim packages. Generic third‑party coding cannot match factory heating‑power profiles and thermistor threshold values.

Poor‑quality edits may trigger intermittent DTC faults. They can also cause uneven seat heating or trigger unwanted over‑heat safety cut‑offs during operation.

Our dealer‑level programming follows official JLR OEM technical specifications. We apply only validated CCF configuration flags for software‑activation jobs. We avoid permanent DSM or PSM ECU‑flash operations. All factory thermal‑protection limits and diagnostic‑logging routines stay intact. This protects long‑term heating‑mat and seat‑module hardware reliability.

Core OEM Technical Features

Once technicians finish coding and any physical‑hardware installation work, Heated Front Seats run to official JLR factory specifications.

Driver and passenger front seats offer independent multi‑stage heating levels. Users can select high, medium or low heat output for cold‑weather driving conditions.

Built‑in NTC thermistor sensors continuously monitor seat‑surface temperature. They adjust heating‑element power to hold the selected comfort temperature level.

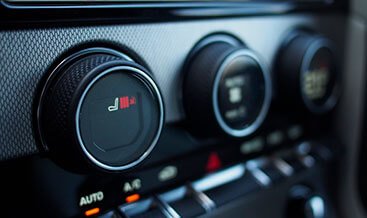

Full heated‑seat adjustment menus appear inside the Pivi Pro infotainment climate interface. Heating operation also respects ignition‑cycle power‑down safety rules.

Every heating‑cycle timing, power‑level mapping and thermal‑cutoff value keeps original OEM factory‑calibration values.

Key Technical & Functional Benefits

• Dormant Heated‑Seat Hardware Unlock: Activate factory‑fitted DSM‑PSM‑controlled heating‑mat and thermistor hardware locked behind CCF trim‑level software restrictions.
• Independent Multi‑‑Stage Front Seat Heating: Enable adjustable high / medium / low heating levels for both driver and front‑passenger seating positions.
• Native Pivi Pro Infotainment Synchronisation: Restore genuine heated‑seat adjustment menus and status indicators within the factory infotainment climate system.
• OEM Thermistor‑Driven Thermal‑Safety Protection: Preserve factory temperature‑sensing and over‑heat cut‑off safety logic for seat heating elements.
• Fault‑Free Multi‑Module Calibration: Dealer‑grade DOIP programming plus thermistor‑sensor validation maintains clean DSM‑PSM‑BCM‑GWM communication with zero leftover heated‑seat‑related DTC fault‑codes.
• Warranty‑Safe Reversible Configuration: Apply only validated CCF‑flag edits with no permanent module re‑flashing or destructive seat‑wiring modifications.

Vehicle Compatibility

This Heated Front Seats upgrade supports all DOiP‑capable JLR platforms compatible with front heated‑seat assemblies.

Supported vehicles include New Range Rover L460, Range Rover Sport L461, Defender L663, Velar, Evoque and latest‑generation premium Jaguar models.

Some chassis roll‑off production pre‑fitted with genuine heating‑mat and thermistor sensor hardware. Other vehicles accept OEM heated‑front‑seat retrofit kits.

Before technicians start coding or retrofit tasks, our team completes a full pre‑program diagnostic scan. This scan validates DSM‑PSM module firmware versions, LIN‑bus stability and genuine heated‑seat‑hardware eligibility status including thermistor‑sensor health checks.

Service & Transactional Details

Our complete service workflow opens with multi‑module pre‑upgrade diagnostics covering DSM driver‑seat‑module, PSM passenger‑seat‑module, BCM body‑controller and GWM gateway unit.

We inspect existing seat‑system operation and read DSM‑PSM diagnostic data where heated‑seat hardware is present.

When valid genuine heated‑front‑seat hardware exists on‑board, technicians run official JLR Pathfinder DOIP CCF programming. This procedure enables multi‑stage heated‑seat parameters and restores front‑seat‑heating functional logic.

For full‑retrofit assignments, technicians fit genuine OEM heating‑mat assemblies, NTC thermistor sensors plus corresponding LIN‑bus wiring‑harness adaptors.

Next, we complete DSM‑PSM‑module configuration, thermistor‑sensor calibration and bus synchronisation before functional validation testing.

We verify multi‑level heating performance, thermal‑safety cut‑off response and Pivi Pro climate‑menu responsiveness. Lastly, technicians clear all residual fault‑codes to deliver consistent long‑term OEM‑standard Heated Front Seats performance.
