ClearSight interior rear view mirror

ClearSight Interior Rear View Mirror Activation & Retrofit | OEM JLR Digital Rear‑View Upgrade

Short Description

Our ClearSight Interior Rear View Mirror service provides software‑only activation. It also delivers complete hardware‑plus‑coding retrofit for modern DOiP‑enabled Jaguar and Land Rover vehicles.

A small number of vehicles come pre‑fitted with ClearSight‑capable mirror, roof‑mounted rear camera and LIN‑bus wiring assemblies. Factory CCF trim‑level restrictions disable the digital‑view function.

The mirror will only work as a standard electro‑chromic reflective unit. You cannot toggle to wide‑angle digital camera feed even with full physical hardware already fitted.

We use certified Pathfinder DOIP programming. It updates OCM overhead‑control‑module, BCM body‑controller and GWM gateway CCF parameters to unlock full ClearSight feature‑sets.

For vehicles missing genuine mirror or roof camera hardware, we supply OEM assemblies and LIN‑coaxial wiring‑harness adaptors. Our OEM‑compliant setup maintains stable LIN‑CAN‑bus communication. It clears mirror‑camera‑related DTC faults across all connected body‑control modules.

Product Technical Overview

JLR OEM ClearSight Interior Rear View Mirror system is managed mainly by the OCM overhead‑control‑module. The OCM communicates with the smart‑film mirror unit and roof‑mounted rear camera over LIN‑bus and coaxial video lines.

This system can switch between traditional reflective mirror mode and HD digital camera view. The rear camera captures wide‑angle footage with enhanced low‑light performance for night‑time driving.

Physical fitment of ClearSight mirror and rear camera alone is not sufficient. Valid CCF build‑file flags must notify the vehicle network that the digital rear‑view hardware is installed.

Several DOiP‑architecture JLR vehicles hold dormant ClearSight capability on higher trim chassis. Generic third‑party coding cannot match factory video‑signal parameters and mirror‑mode toggle thresholds.

Poor‑quality edits may trigger intermittent OCM‑related DTC faults. They can also cause distorted camera images or break existing auto‑dimming mirror functionality.

Our dealer‑level programming follows official JLR OEM body‑system technical specifications. We apply only validated CCF configuration flags for software‑activation jobs. We avoid permanent OCM ECU‑flash operations. All factory auto‑dimming logic and diagnostic‑logging routines stay intact. This protects long‑term mirror‑assembly and camera‑hardware reliability.

Core OEM Technical Features

Once technicians finish coding and any physical‑hardware installation work, ClearSight Interior Rear View Mirror runs strictly per official JLR factory specifications.

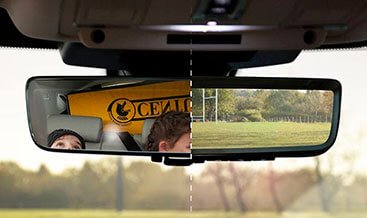

Flip the built‑in physical tab to toggle between reflective‑mirror mode and wide‑angle HD digital rear‑camera feed. The digital view cuts vision obstructions from rear passengers or loaded luggage compartments.

The roof‑mounted camera delivers optimised night‑time image processing. It reduces glare from following‑vehicle headlights during dark driving conditions.

Standard electro‑chromic auto‑dimming remains fully functional in reflective‑mirror mode. Some mirror variants also include optional integrated HomeLink garage‑door‑opener controls.

Every LIN‑bus communication timing, camera exposure setting and mode‑toggle sensitivity retains original OEM factory‑calibration values.

Key Technical & Functional Benefits

• Dormant ClearSight Mirror Hardware Unlock: Activate factory‑fitted OCM‑controlled mirror and roof‑camera hardware locked behind CCF trim‑level software restrictions.
• Dual‑Mode Reflective & Digital Rear‑View: Switch between traditional mirror surface and wide‑angle digital camera feed for unobstructed rear‑ward visibility.
• Low‑Light Optimised Camera Processing: OEM‑calibrated camera handles night‑time glare for clear rear‑view images under poor lighting scenarios.
• Preserve Auto‑Dimming Mirror Function: Retain original electro‑chromic anti‑glare performance when operating in standard reflective‑mirror mode.
• Fault‑Free Multi‑Module Calibration: Dealer‑grade DOIP programming plus rear‑camera static calibration maintains clean OCM‑BCM‑GWM communication with zero leftover ClearSight‑related DTC fault‑codes.
• Warranty‑Safe Reversible Configuration: Apply only validated CCF‑flag edits with no permanent module re‑flashing or destructive overhead‑console wiring modifications.

Vehicle Compatibility

This ClearSight Interior Rear View Mirror upgrade supports all DOiP‑capable JLR platforms compatible with OCM‑managed ClearSight mirror‑camera assemblies.

Supported vehicles include New Range Rover L460, Range Rover Sport L461, Defender L663, Velar, Evoque and latest‑generation premium Jaguar DOIP‑chassis models.

Some chassis roll‑off production pre‑wired for ClearSight mirror and roof‑camera hardware. Other vehicles require full OEM retrofit kits including mirror, camera and dedicated coaxial‑LIN harness adaptors.

Before technicians start coding or retrofit tasks, our team completes a full pre‑program diagnostic scan. This scan validates OCM module firmware versions, LIN‑bus stability and genuine ClearSight‑hardware eligibility status including rear‑camera health checks.

Service & Transactional Details

Our complete service workflow opens with multi‑module pre‑upgrade diagnostics covering OCM overhead‑control‑module, BCM body‑controller and GWM gateway unit.

We inspect existing auto‑dimming mirror performance. We read OCM diagnostic data where ClearSight mirror and roof‑camera hardware is present.

When valid genuine ClearSight‑capable hardware exists on‑board, technicians run official JLR Pathfinder DOIP CCF programming. This procedure enables ClearSight mirror‑camera parameters and restores dual‑mode reflective‑digital‑view functional logic.

For full‑retrofit assignments, technicians fit genuine OEM ClearSight mirror assemblies, roof‑mounted rear‑camera units plus corresponding LIN‑coaxial wiring‑harness adaptors.

Next, we complete OCM‑module configuration, rear‑camera static calibration and bus synchronisation before functional validation testing.

We verify mirror‑mode toggle response, digital‑image quality, low‑light camera performance and auto‑dimming operation. Lastly, technicians clear all residual fault‑codes to deliver consistent long‑term OEM‑standard ClearSight Interior Rear View Mirror performance.
