3D Surround Camera | JLR OEM CAMM‑BCM‑IC CCF‑DoIP Activation & CAN‑FD Calibration
3D Surround Camera | JLR OEM CAMM‑BCM‑IC CCF‑DoIP Activation & CAN‑FD Calibration
Our 3D Surround Camera Activation Service unlocks factory-spec 360° panoramic parking vision for modern Jaguar and Land Rover vehicles. Many late-generation JLR models feature pre-installed OEM camera arrays, ultrasonic parking sensors and a dedicated CAMM camera module. Even with complete physical hardware fitted, factory CCF trim restrictions lock advanced 3D surround functionality by default. Stock vehicle settings only deliver basic single-camera rear-view footage without 3D stitching or multi-angle modes. In fact, generic third-party coding often mismatches CAMM and CAN-FD network parameters. This improper configuration causes distorted stitching, frozen camera feeds and persistent parking-system DTC faults. For this reason, our Pathfinder-validated DoIP programming enables full 3D surround camera performance while preserving ADAS and body network stability.
JLR 3D Surround Camera Technical Overview
CAMM Module, Multi-Camera Stitching & Factory Software Lock

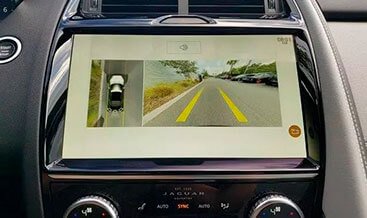

Genuine JLR 3D Surround Camera systems operate via the dedicated CAMM control module. This module communicates with the BCM and infotainment IC across the vehicle high-speed CAN-FD network. The system aggregates footage from multiple exterior cameras to render a seamless 360° overhead panoramic view. Additionally, it integrates 14 ultrasonic sensors to overlay proximity obstacle data on the live display. It supports multiple OEM view modes, including 3D perspective view, junction view and clear plan view for precise low-speed manoeuvring. Since factory CCF configurations disable these advanced rendering algorithms, professional calibration is mandatory to unlock full functionality.
Core Functional & Safety Technical Benefits
360° Panoramic Vision & Precision Parking Assistance
Activating the OEM 3D Surround Camera drastically improves low-speed safety and parking accuracy for daily driving. Firstly, the stitched 3D overhead view eliminates traditional blind spots around the vehicle perimeter. Furthermore, dedicated junction view enhances visibility on tight urban corners and narrow driveway entries. Meanwhile, ultrasonic sensor overlays deliver real-time distance feedback to nearby obstacles. Unlike basic rear-view cameras, this OEM system renders accurate vehicle topography for confident off-road and confined-space manoeuvring. All visual processing follows strict JLR OEM algorithm standards to prevent visual glitches and latency issues.
OEM Compliance & Warranty-Safe Programming Workflow
Fault-Free CAN-FD Sync & Reversible CCF Feature Coding
Our 3D surround camera upgrade fully complies with official JLR dealer DoIP and Pathfinder diagnostic protocols. To begin, we conduct complete pre-service diagnostics for CAMM, BCM and CAN-FD gateway modules to log existing faults. Next, we verify full OEM camera array and ultrasonic sensor hardware integrity before programming. We enable dormant 3D vision CCF flags without overwriting core CAMM firmware. If your vehicle lacks factory hardware, we provide genuine OEM camera retrofit and full network adaptation. All coding adjustments remain fully reversible and compatible with official SOTA updates. Ultimately, this workflow maintains full vehicle warranty integrity for private and fleet JLR vehicles.
Key Technical Features
-
OEM 360° 3D Panoramic View: Fully stitched multi-camera footage with accurate overhead 3D vehicle rendering.
-
Multi-Mode Parking Vision: Activates junction view, plan view and adjustable 3D perspective viewing modes.
-
CAMM CAN-FD Network Calibration: Dealer-grade module relearn, sensor synchronisation and parking-system DTC fault clearing.
-
Sensor Fusion Integration: Combines camera vision with ultrasonic proximity detection for enhanced obstacle awareness.
Service Inclusions | Informational & Transactional
