3D Surround Camera | JLR OEM CAMM‑BCM‑IC CCF‑DoIP Activation & CAN‑FD Calibration
3D Surround Camera | JLR OEM CAMM‑BCM‑IC CCF‑DoIP Activation & CAN‑FD Calibration

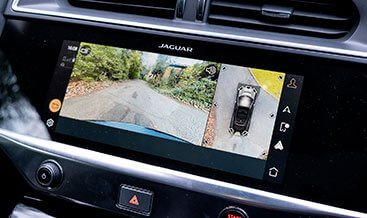

Our 3D Surround Camera Activation Service unlocks factory‑spec 360‑degree panoramic parking vision for modern Jaguar and Land‑Rover vehicles. In many late‑generation JLR platforms, multi‑position exterior camera arrays, ultrasonic parking sensors and dedicated CAMM camera module are pre‑installed from factory. Even with complete physical camera‑system hardware fitted, factory CCF trim‑level locks disable advanced 3D‑stitching view modes by default. As a result, only basic single‑rear‑camera feed appears within the Pivi‑Pro touch‑screen. Unfortunately, untrained generic coding often misaligns CAMM and CAN‑FD network parameters. As a direct consequence, owners face distorted image stitching, frozen video feeds and persistent parking‑system‑related DTC fault‑codes. For this reason, our Pathfinder‑validated DoIP programming safely enables full 3D surround‑camera performance while preserving ADAS and body‑network integrity.
JLR 3D Surround Camera Technical Overview
CAMM Multi‑Camera Hardware, CAN‑FD Integration & Factory CCF Software Lock
Controlled by the CAMM camera‑assembly‑management module, JLR 3D Surround Camera communicates with BCM and IC infotainment controller over high‑speed CAN‑FD vehicle network. Furthermore, four wide‑angle exterior HD cameras capture perimeter footage for real‑time panoramic stitching. Notably, the system fuses video input with 14 ultrasonic parking‑sensor data for obstacle‑distance overlay on‑screen. Specifically, it supports multiple OEM view profiles including 3D perspective view, junction view and clear plan view for low‑speed manoeuvres. Meanwhile, the CAMM manages image‑processing tasks, camera thermal protection and fault‑status reporting to the instrument cluster. Therefore, vehicles fitted with genuine complete camera‑array and sensor hardware only need validated CCF‑flag activation plus CAN‑FD module relearn for full operational capability.
Core Functional & Safety Technical Benefits
360‑Degree Panoramic Vision & Multi‑Mode Parking Assistance
Activation of OEM 3D Surround Camera greatly improves low‑speed manoeuvring safety for urban parking and off‑road scenarios. Above all else, stitched overhead 3D view eliminates hard‑to‑see blind spots all around the vehicle perimeter. In addition, junction‑view mode improves visibility when entering tight driveways and narrow city intersections. Meanwhile, ultrasonic‑sensor fusion displays real‑time obstacle proximity markers on the infotainment display. Equally important, every frame‑rendering cycle adheres strictly to JLR OEM algorithm specifications. These built‑in safeguards prevent video lag, picture distortion and unexpected camera‑module over‑heating risks.
OEM Compliance & Warranty‑Safe Programming Workflow
Fault‑Free CAMM‑BCM‑IC Synchronisation & Reversible CCF Coding
Our 3D‑surround‑camera upgrade strictly adheres to official JLR DoIP programming and Pathfinder dealer diagnostic workflows. To start the process, we execute thorough pre‑service diagnostics for CAMM, BCM, IC and CAN‑FD gateway modules, logging any pre‑existing stored DTC faults. After hardware validation confirms intact camera‑array and ultrasonic‑sensor assemblies, we enable dormant CCF feature flags without rewriting CAMM base firmware. Should your vehicle lack required physical camera‑system hardware, we supply genuine OEM camera‑retrofit kit alongside full CAN‑FD network adaptation. What is more, all coding adjustments remain fully reversible. You may restore original factory settings for dealer servicing and official SOTA over‑the‑air updates. Ultimately, this service preserves complete vehicle‑system integrity for private, leased and fleet‑operated JLR automobiles.
Key Technical Features
-
OEM 360° 3D Panoramic Vision: Fully stitched multi‑camera footage delivering overhead 3D perspective rendering around the full vehicle perimeter.
-
Multi‑View Operating Modes: Activates junction view, clear plan view and adjustable on‑road / off‑road camera profiles on the Pivi‑Pro touch‑screen.
-
CAMM‑CAN‑FD Network Calibration: Dealer‑grade module relearn, camera‑sensor fusion synchronisation and clearing of surround‑camera‑associated DTC fault‑codes.
-
Reversible OEM‑Compliant Coding: Clean CCF‑DoIP activation with zero permanent fault‑codes and full ADAS‑infotainment‑system integrity.
Service Inclusions | Informational & Transactional
Complete 3D Surround Camera Activation & CAN‑FD Calibration Package
Our full‑scope service starts with VIN‑driven CAMM, exterior‑camera‑array and ultrasonic‑sensor hardware compatibility verification. Next, we run comprehensive pre‑programming diagnostic scans across CAMM‑BCM‑IC‑CAN‑FD subsystems. We then apply bespoke CCF‑DoIP 3D‑surround‑camera feature activation, followed by precise CAN‑FD module relearn and sensor‑fusion alignment. After programming finishes, we validate all multi‑angle view‑modes, obstacle‑overlay response and fault‑free camera‑system‑behaviour. In summary, upgrade your Jaguar or Land‑Rover with factory‑grade 3D Surround Camera, to gain confident low‑speed manoeuvring with complete OEM ADAS‑system reliability.
